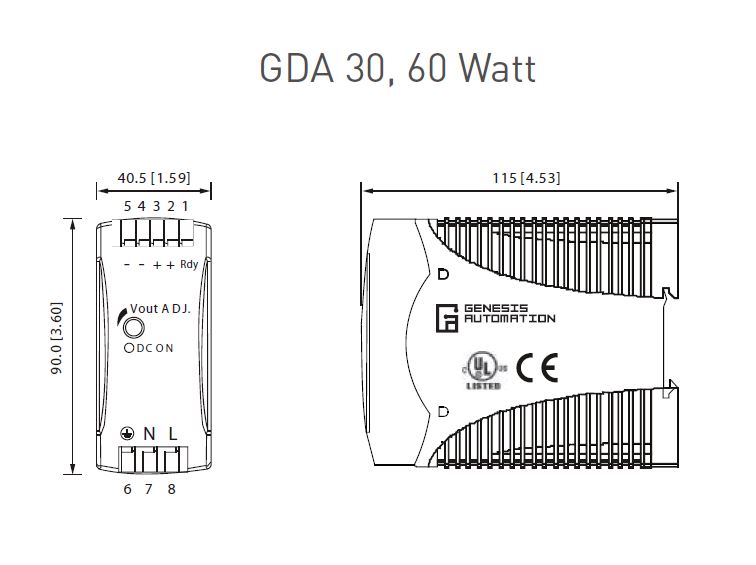

GDA 30, 60 Watt Power Supply

Model Numbers

GDA 30  30 Watt DIN Rail Power Supply
GDA 60 60  Watt DIN Rail Power Supply

Features

  • DIN rail mounting
  • Wide input Range 85-264 VAC, 47-63Hz
  • Finger safe terminals - spring clamp or screw terminal available for all models 30W &-60W
  • Status indicator GREEN LED for DC ON at start-up
  • Relay output Power Ready at start-up (24VDC models only) on 30W & 60W
  • Operating temperature range -4 to 160F, continuous operation (no de-rating) to 142F
  • Output overload, over voltage, short circuit & no load protection
  • Input line fuse & filter with surge voltage protection, and inrush current limiter
  • Class 2 UL 1310 for all models (except GDA30-05, GDA60-05/12); UL 508 (E222875), CE
  • Input isolation voltage is 3kV, and input isolation resistance is 100 Mega ohm
  • Plastic body for all models 30W & 60W

Ordering Information

ORDERING FORMAT GDA(Wattage)-(Voltage)
WATTAGES (5, 10, 18, 30, 60, 100)
VOLTAGES 5 (on5-60W), 12 (on 5-60W), 15 (on 5-18W), 24 (All), 48 (30, 60W)
ORDERING EXAMPLE  GDA30-24A  (GDA Power Supply 30(Wattage) 24(Voltage) with Screw Terminal)

*GDA100 Rated 92 watts to meet UL Class 2 requirements

Default: Spring Clamp
A: Screw Terminal

Other

OUPUT VOLTAGE   OUTPUT VDC ADJUSTABLE  RANGE
   5-18W 30-60W   210-480W
5 VOLTS    4.5-5.7  5-5.5 N/A
12 VOLTS   10.8-13.8 12-14 11.4-14.5
15 VOLTS   13.5-17.2 15-16.5 N/A
24 VOLTS   21.6-28.8 24-28 22.5-28.5
 48 VOLTS   N/A 48-55   47-56
